MSW/RDF Recycling Plant, Trier


Municipal solid waste and organic waste are collected together and are temporarily stored in a deep bunker. Then the waste is pre-shredded and automatically stocked in drying boxes for 10 to 14 days. Biological processes heat the material up to 50 degrees. During the drying period the weight decreases by about 40 % because of vaporized water.

After the drying process the dried and inactive material is removed automatically out of the boxes by crane and is transported into the sorting plant by conveyor belts.

After the volume flow is divided into two parallel sorting lines, overbelt magnetic separators and eddy currents sort out all ferrous and non-ferrous metals. The remaining metal-free material flow is loaded into intermediate bunkers or directly into trailer trucks.

HTP was assigned the overall planning and the detail engineering of the RDF plant.

PROJECT CHARACTERISTICS

Capacity:

  • 120,000 – 130,000 t (annual capacity)
  • 43 t/h (RDF plant after biological drying)

Design:  separation of ferrous and non-ferrous metals by

  • overbelt magnetic separator
  • eddy current

Products

  • ferrous metals
  • non-ferrous metals
  • RDF products

Area:

  • about 15.000 m² (total plant floor)
  • 4.300 m² (drying hall)
  • 2.300 m² (sorting plant)

Company:

  • RegAb Zweckverband Regionale
  • Abfallwirtschaft (parent company)/RegEnt GmbH (operator)

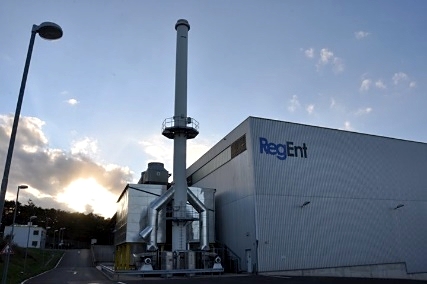

Exterior view from recycling plant

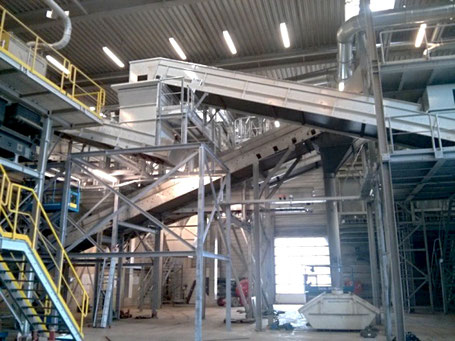

RDF plant after biological drying
